Curved Edges, Parallel Edges, and Self-Loops
Sysbiolab Team
2026-07-20
Source:vignettes/articles/curved-edges.Rmd
curved-edges.Rmd
# Check required version
if (packageVersion("RGraphSpace") < "1.4.3"){
message("Need to update 'RGraphSpace' for this vignette")
remotes::install_github("sysbiolab/RGraphSpace")
}Overview
The geom_edgespace() function can render edges as curves
through its curve argument. Curved edges are especially
useful when a pair of nodes is connected by more than one edge, or when
an edge starts and ends at the same node (a self-loop).
Setting up the example data
We build a small toy graph containing ordinary edges, parallel edges,
and self-loops. A self-loop is an edge whose two endpoints are the same
vertex, whereas parallel edges are edges that connect the same pair of
vertices. The graph is wrapped into GraphSpace objects with
simplify = FALSE, since parallel edges and self-loops are
otherwise removed by default when a graph is validated.
# Toy graph topology: hub + ring
n <- 10; hub <- 5
g <- make_ring(n, directed = TRUE) %u%
make_star(n, center = hub, mode = "out")
# Add self-loops
g <- add_edges(g, rep(c(2,4,6,8,10,10), each = 2))
# Add parallel edges
g <- add_edges(g, c(6,5, 6,5, 5,4))
# Set node and edge colors via igraph attributes directly, rather than
# through a geom, as these values will be fixed (not data-driven)
V(g)$nodeColor <- "steelblue1"
E(g)$edgeColor <- "purple"
E(g)$label <- seq_len(ecount(g))
# Build a GraphSpace with a circular layout; simplify = FALSE keeps the
# parallel edges and loops intact
gs_toy <- GraphSpace(g, layout = layout_in_circle(g), simplify = FALSE)
#> Validating the 'igraph' object...
#> Vertex attribute 'name' missing; assigning names...
#> Ignoring graph-level attributes: 'name_1', 'name_2', 'mutual', ...
#> Creating a 'GraphSpace' object...
# Rescale coordinates to a standard range
# (optional, but recommended for consistent plotting)
gs_toy <- normalizeGraphSpace(gs_toy)
#> Normalizing node coordinates to graph space...
gs_toy
#> A GraphSpace-class object for:
#> IGRAPH 8f7bbac DN-- 10 27 --
#> + attr: x (v/n), y (v/n), name (v/c), nodeLabel (v/c), nodeSize (v/n),
#> | nodeColor (v/c), edgeColor (e/c), arrowType (e/n), label (e/n)
#> + node spatial boundaries: normalized to graph space
#> | x: [-1, 1] -> [0, 1] (cols)
#> | y: [-1, 1] -> [0, 1] (rows)Curved edges
By default, simple edges are drawn as straight lines.

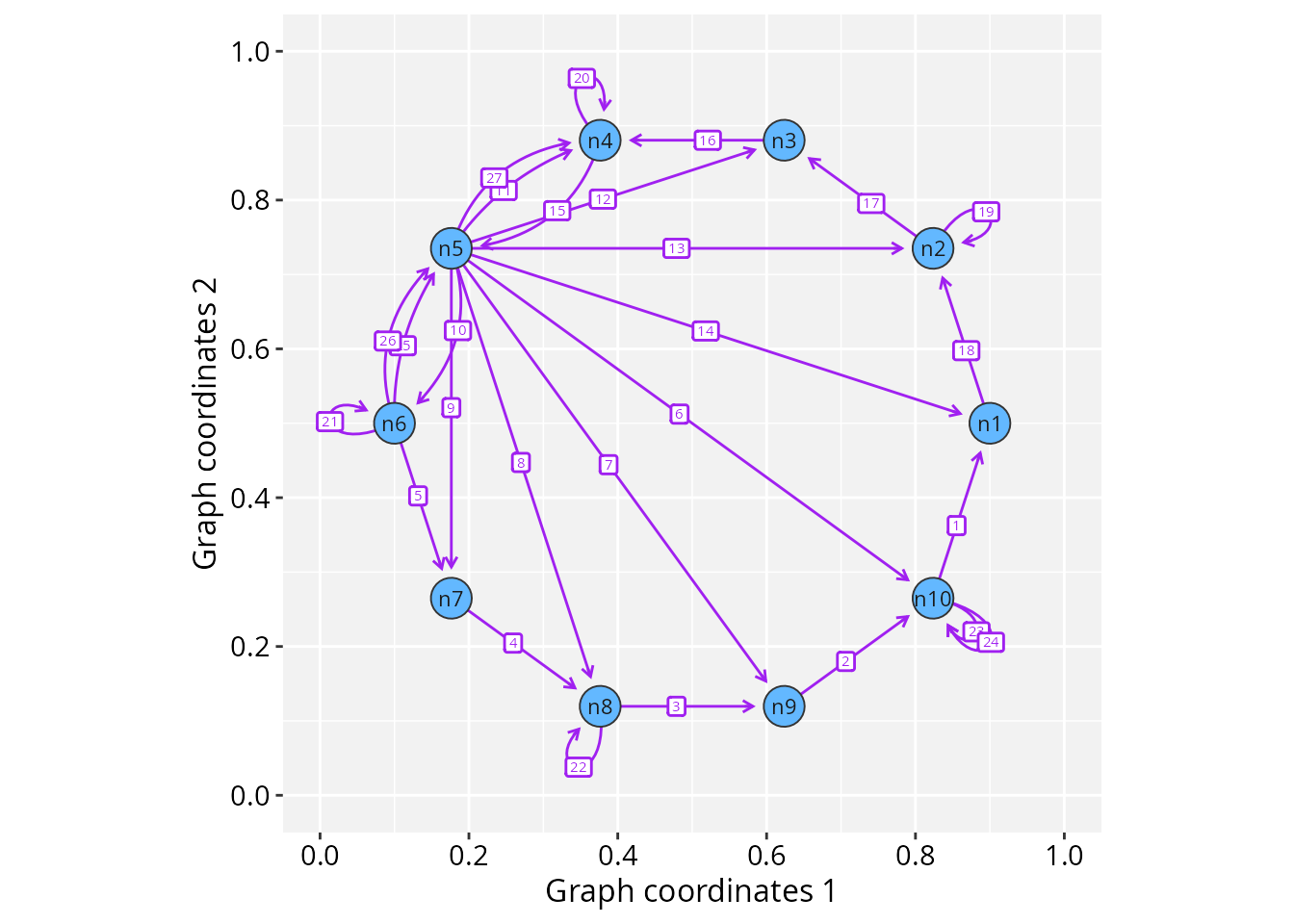

ggplot(gs_toy) +
geom_edgespace(aes(label = label), label_size = 2) +
geom_nodespace(aes(label = nodeLabel), label_size = 3) +
theme_gspace_coords(is_norm = TRUE)
Increasing curve bows each simple edge through a control
point displaced perpendicular to it, by curve times the
edge length. Arrowheads, labels, and node-clipping offsets automatically
follow the local curve direction, so they stay correctly oriented as the
edge bends.

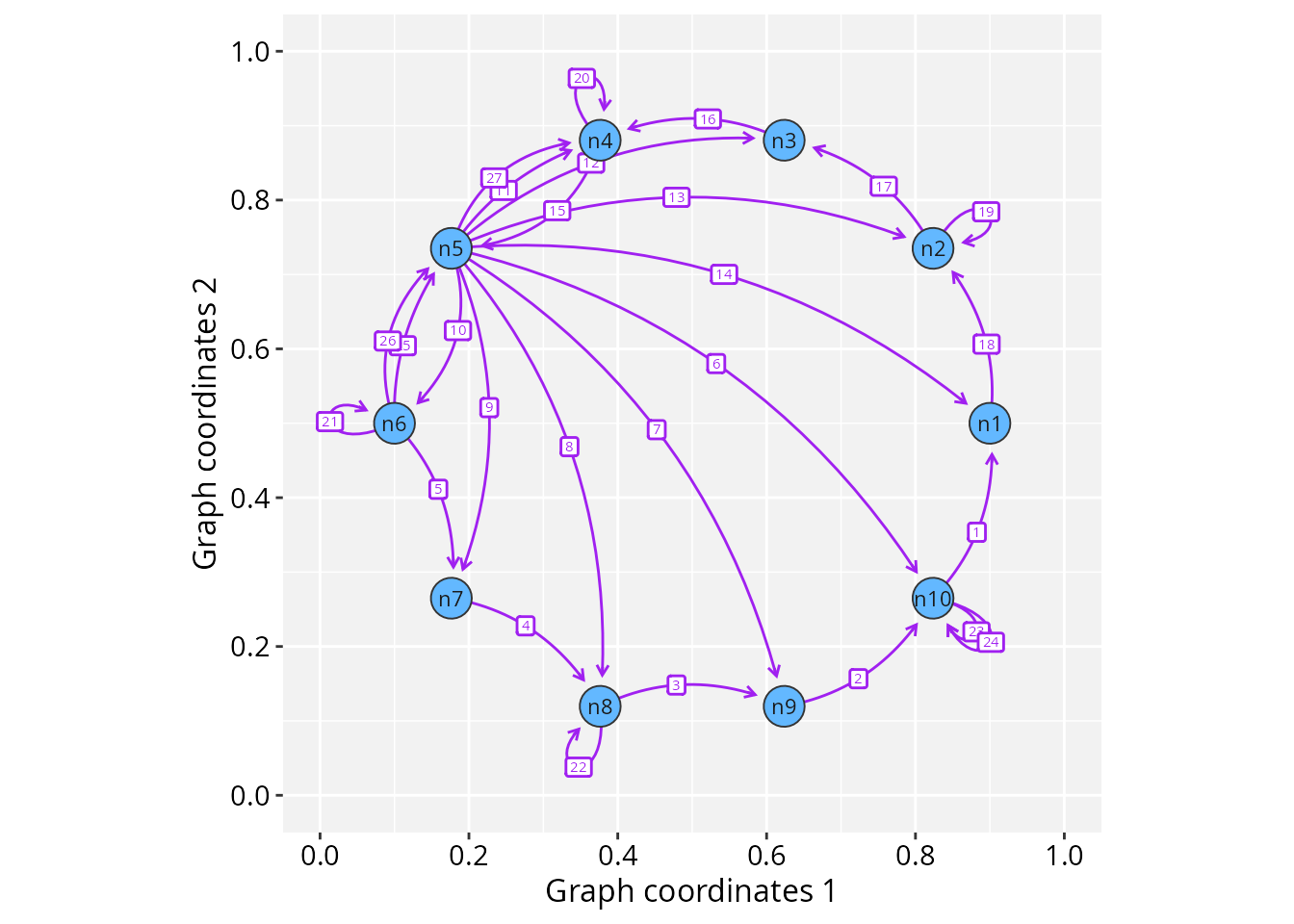

ggplot(gs_toy) +
geom_edgespace(aes(label = label), label_size = 2, curve = 0.2) +
geom_nodespace(aes(label = nodeLabel), label_size = 3) +
theme_gspace_coords(is_norm = TRUE)
The sign of curve sets which side the simple edge bows
toward.

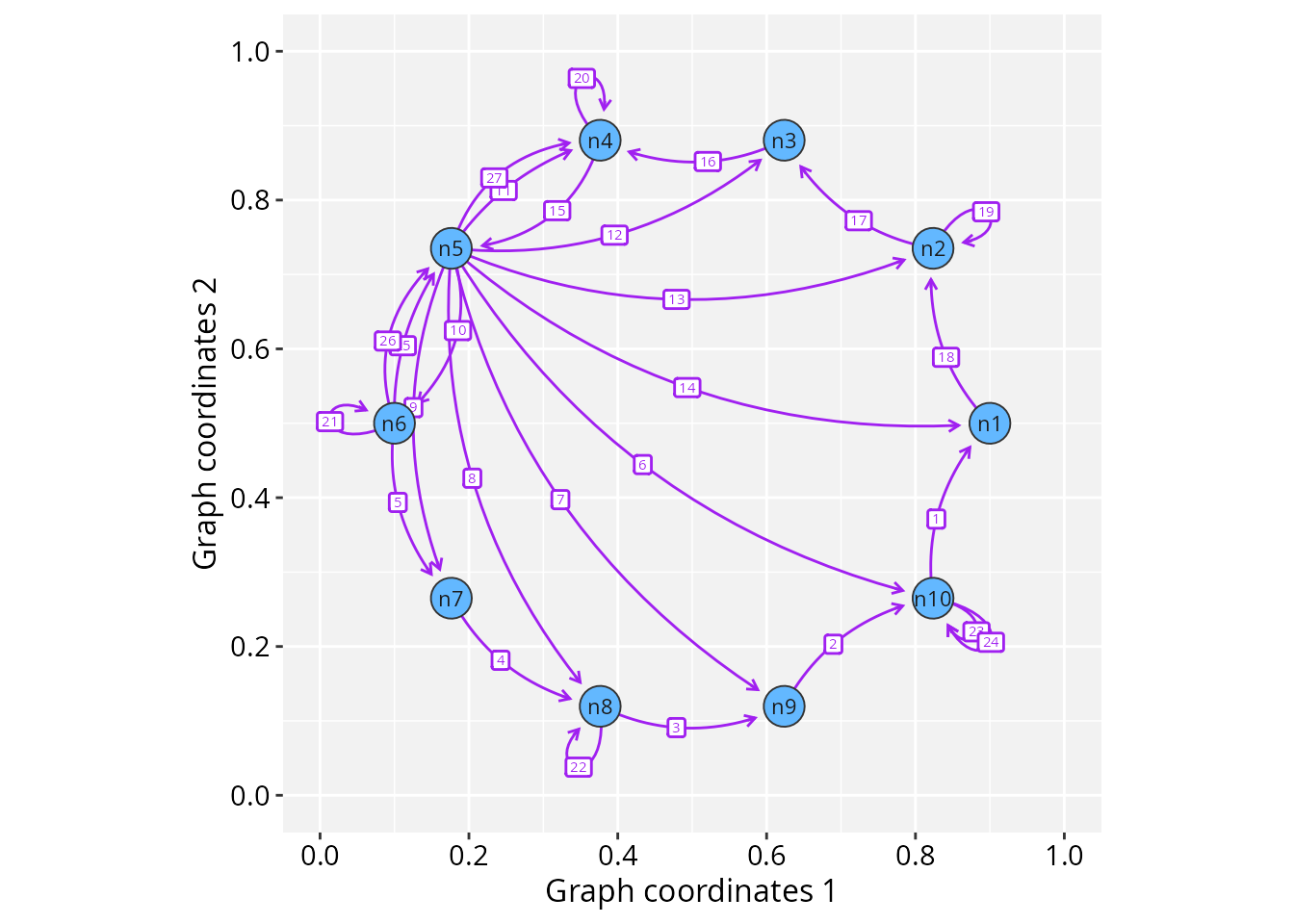

ggplot(gs_toy) +
geom_edgespace(aes(label = label), label_size = 2, curve = -0.2) +
geom_nodespace(aes(label = nodeLabel), label_size = 3) +
theme_gspace_coords(is_norm = TRUE)
Parallel edges and self-loops
curve applies uniformly to simple edges in a layer,
which is not enough on its own to keep parallel edges apart, or to make
a self-loop visible (a loop has no length for curve to be a
fraction of). RGraphSpace handles both automatically: edges
that share the same pair of nodes fan out, and self-loops are drawn with
their own geometry – all without any extra arguments.
The amount of fan-out is controlled by a separate argument,
parallel_spread (default 1), independently of
curve. Lower values keep parallel edges and loops closer
together; higher values spread them further apart.

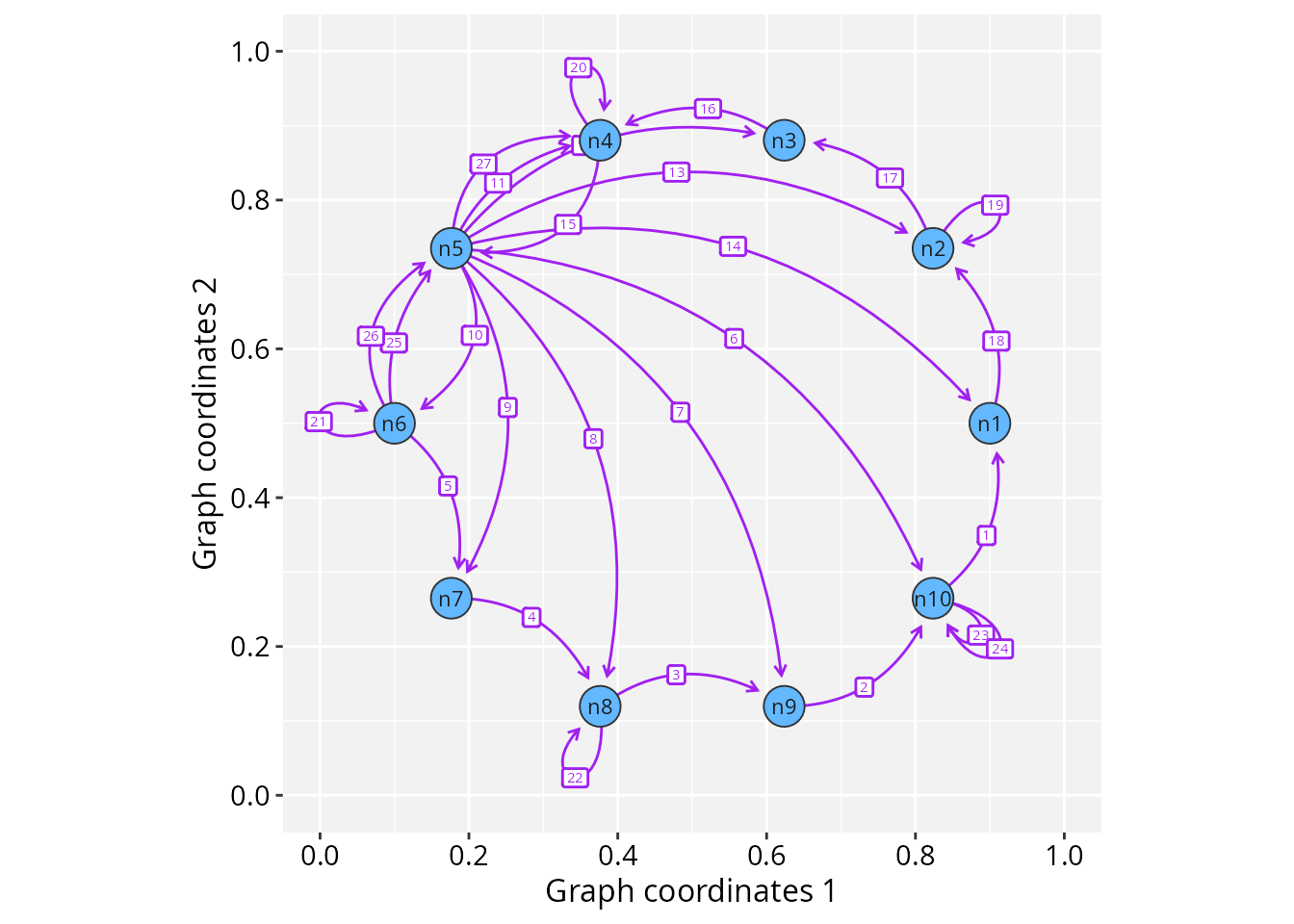

ggplot(gs_toy) +
geom_edgespace(aes(label = label), label_size = 2,
curve = 0.3, parallel_spread = 2) +
geom_nodespace(aes(label = nodeLabel), label_size = 3) +
theme_gspace_coords(is_norm = TRUE)
Orienting self-loops
Self-loops also accept a loop_direction argument, which
controls where a loop sits relative to its node, independently of
parallel_spread’s control over its size. The default,
"adaptive", points each loop away from the graph’s
centroid, so loops naturally expand toward less crowded regions of the
layout. A single numeric value fixes every loop at the same angle (in
degrees), regardless of node position.

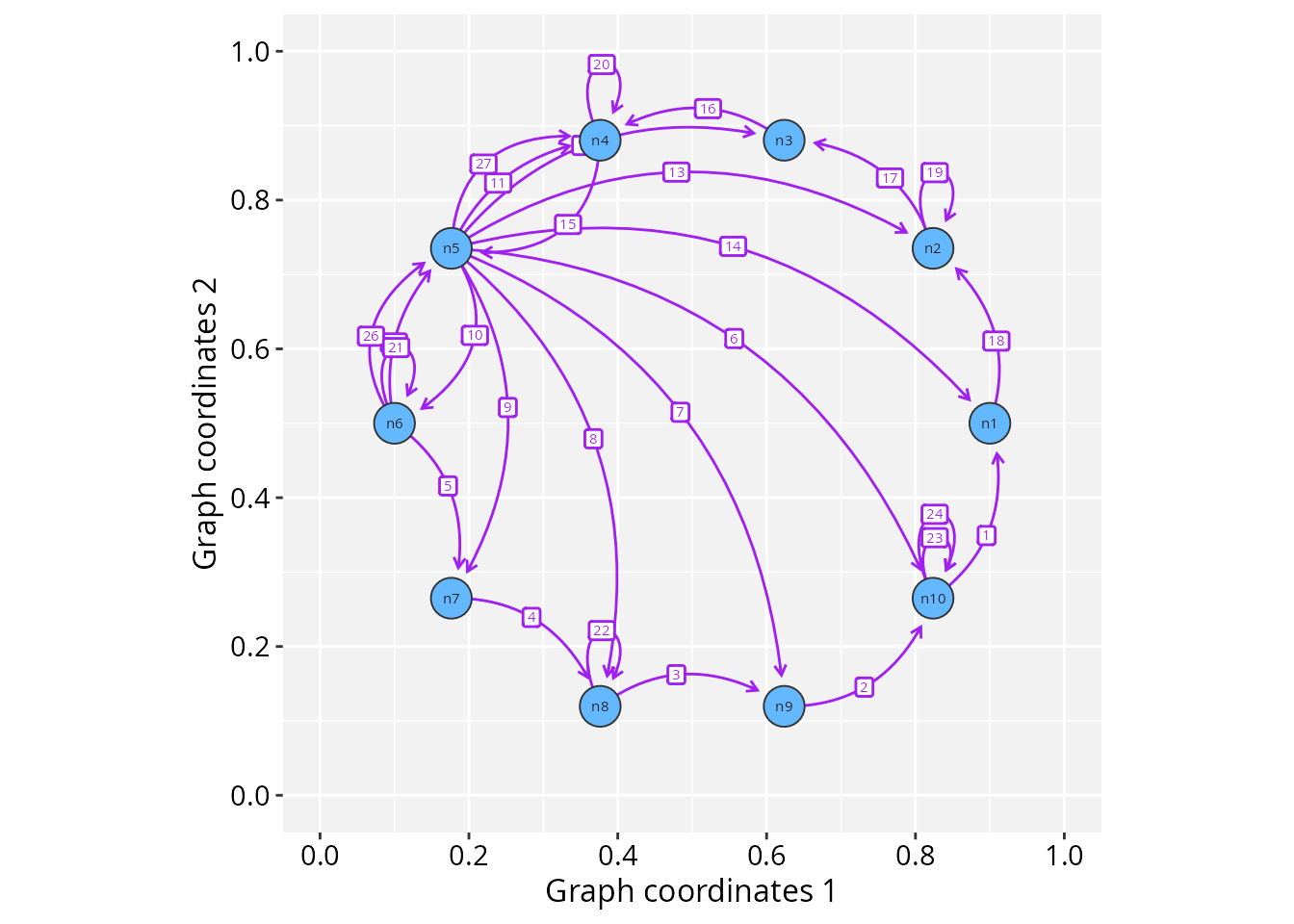

ggplot(gs_toy) +
geom_edgespace(aes(label = label), label_size = 2,
curve = 0.3, parallel_spread = 2, loop_direction = 90) +
geom_nodespace(aes(label = nodeLabel), label_size = 2) +
theme_gspace_coords(is_norm = TRUE)
