Draw node and edge elements in a 2D graph layout

Constructor for GeomGraphSpace ggproto objects.

A wrapper around geom_point that enables direct use of node attributes stored in GraphSpace objects as aesthetics.

This geom is designed to map node-level attributes (e.g., fill, size) or any aesthetics supported by GeomPoint.

Usage

geom_graphspace(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = FALSE,
  arrow_size = 1,
  arrow_offset = 0.01
)

Arguments

mapping: Set of aesthetic mappings created by ggplot2::aes(). These mappings override global aesthetics and are not inherited from the top-level plot.
data: A GraphSpace object.
stat: The statistical transformation to use on the data. Defaults to identity.
position: Position adjustment, either as a string or the result of a call to a position adjustment function.
...: Additional parameters passed to the underlying drawing function in GeomGraphSpace.
na.rm: Logical. Should missing values be removed? Defaults to FALSE.
show.legend: Logical or a named logical vector indicating whether this layer should be included in legends.
inherit.aes: Logical. If FALSE (default), the layer will use aesthetics defined in mapping.
arrow_size: Numeric scaling factor controlling arrowhead geometry (see 'drawing' section).
arrow_offset: Numeric value controlling the base offset of arrows at edge endpoints (see 'drawing' section).

Value

A ggplot2 layer that renders node glyphs defined by GeomGraphSpace.

Aesthetics for node drawing

Nodes are drawn in the main layer of geom_graphspace(), which understands geom_point aesthetics.

If these aesthetics are not explicitly provided in aes(), they are automatically retrieved from the GraphSpace object.

`x`, `y`, `vertex`	Required (automatically supplied).
`fill`	Node interior colour (see aes_colour_fill_alpha).
`colour`	Node border colour (see aes_colour_fill_alpha).
`alpha`	Transparency (see aes_colour_fill_alpha).
`shape`	Node shape (see points and aes_linetype_size_shape).
`size`	Node size (see drawing section and aes_linetype_size_shape).
`stroke`	Node line width (see gg_par and aes_linetype_size_shape).

Required aesthetics x, y, and vertex are supplied from the GraphSpace object and do not need to be manually mapped.

Additional parameters can be passed to control fixed values for the layer. For example: fill = "red", stroke = 3, alpha = 0.5, or shape = 21.

The interpretation of size depends on how it is provided:

As an aesthetic: When mapped within aes(), size follows the behavior of geom_point, using absolute units to ensure consistency with the plot legends.
As a parameter: When set outside aes(), size is treated as a percentage of the viewport ([0, 100]), scaling in npc units. This allows nodes to resize dynamically with viewport changes.

Edge context-aware parameters

These parameters control the edge appearance. If not explicitly provided, they are automatically retrieved from the GraphSpace object. They can be a single value or a vector matching the number of edges:

`edge_colour`	Node border colour.
`edge_linetype`	Edge line type.
`edge_linewidth`	Edge line width.
`edge_alpha`	Edge transparency.

Edge global parameters

These parameters apply globally to all edges in the layer:

`arrow_size`	Arrow scaling factor (default = 1).
`arrow_offset`	Arrow offset from nodes (default = 0.01).
`arrow_lineend`	Line end style (see gpar).
`arrow_linejoin`	Line join style (see gpar).

arrow_size is a numeric scaling factor controlling arrowhead geometry. The value is interpreted in the same numeric space as line width (lwd), ensuring consistent scaling between edge strokes and arrowheads.

arrow_offset is an additive term that offsets arrow endpoints uniformly in graph space and is bounded by the edge length, in NPC units.

Arrowhead types are specified in the GraphSpace constructor.

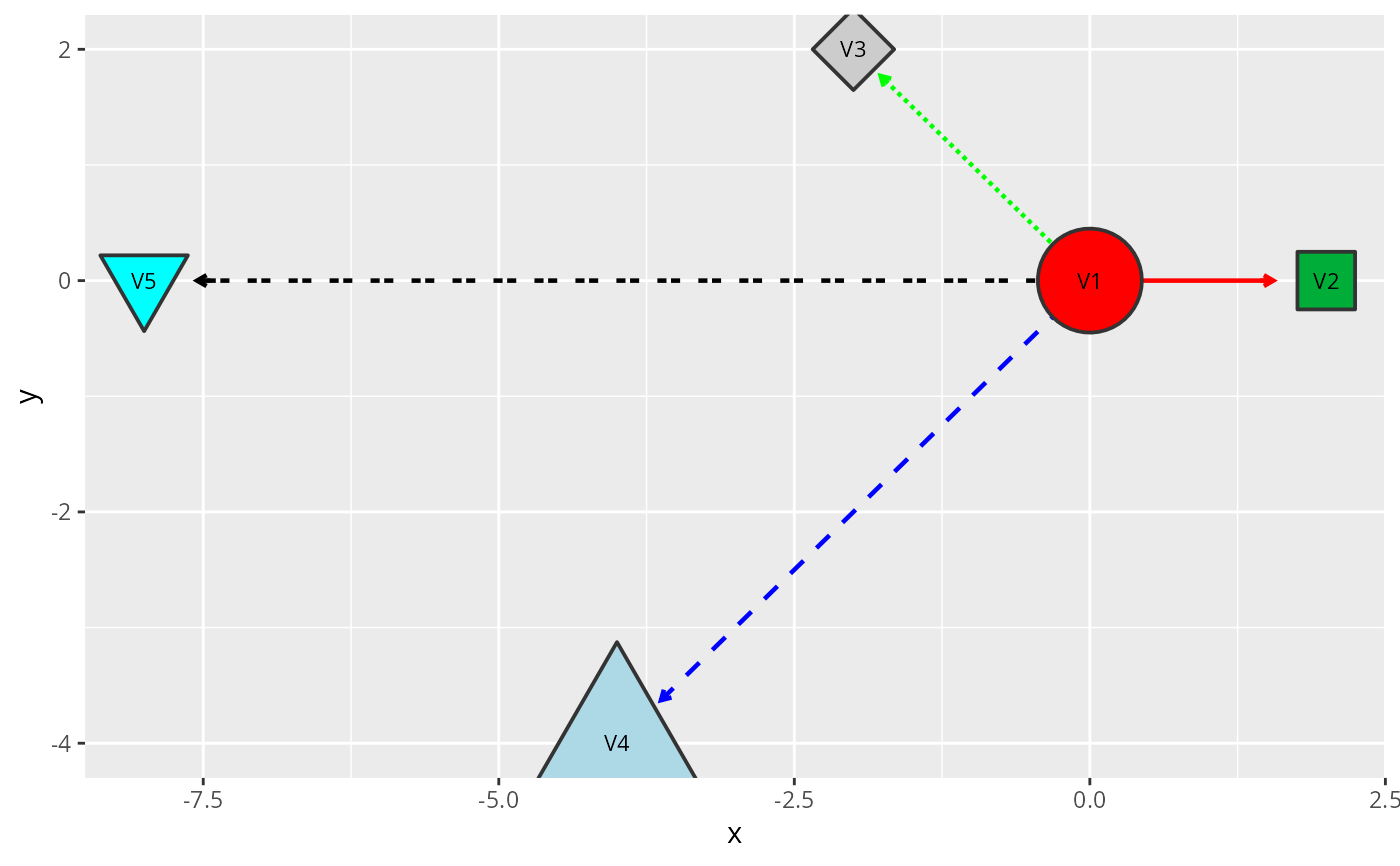

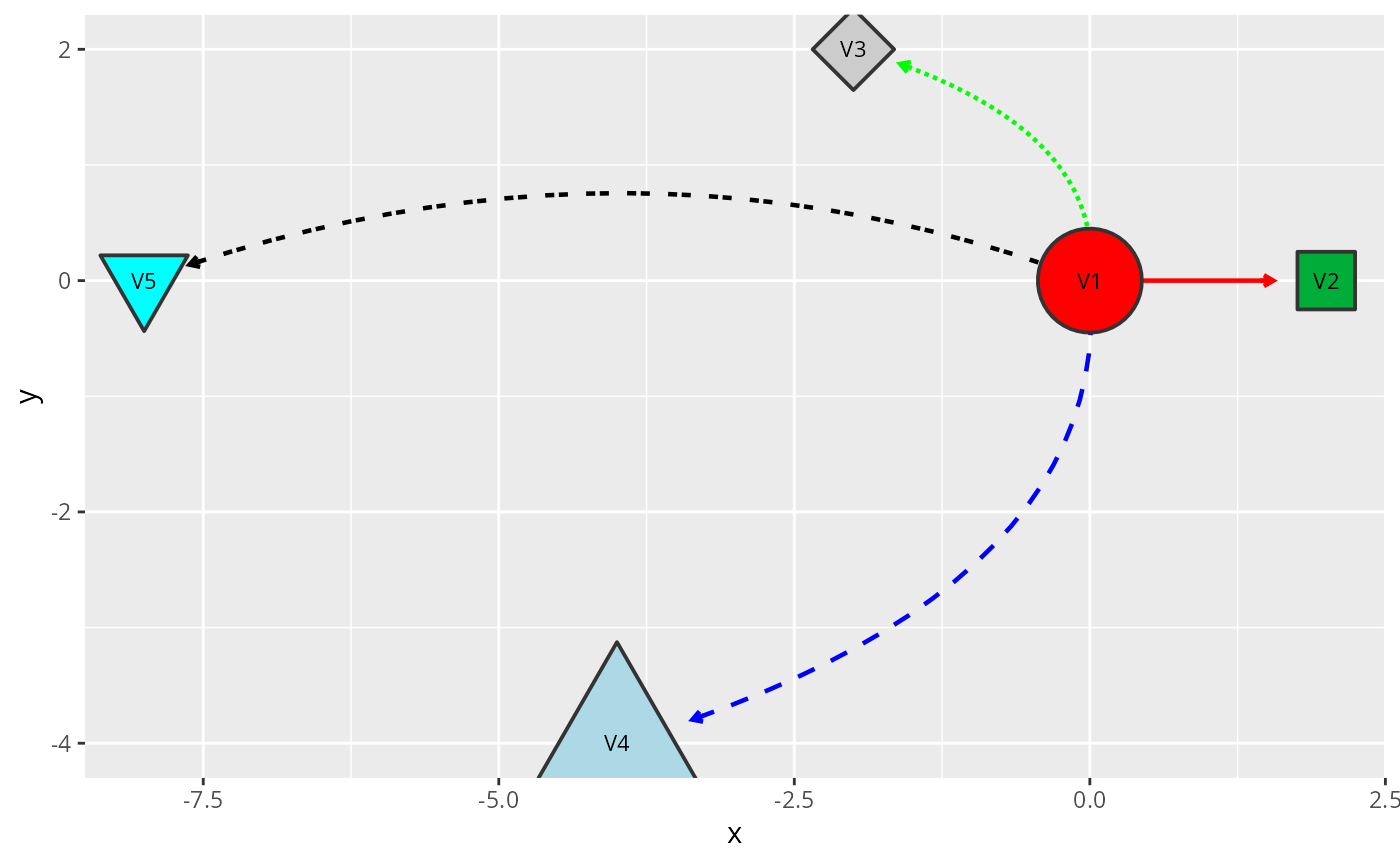

Examples


# Make a demo igraph
library(igraph)
gtoy1 <- make_star(15, mode="out")

# Set some node attributes
V(gtoy1)$nodeSize <- runif(vcount(gtoy1), 1, 20)
V(gtoy1)$nodeColor <- rainbow(vcount(gtoy1))

# Set some variables
V(gtoy1)$user_var1 <- runif(vcount(gtoy1), 1, 3)^3
V(gtoy1)$user_var2 <-  rep(c(1, 2, 3), each = 5)

# Create a GraphSpace object
gs <- GraphSpace(gtoy1, layout = layout_in_circle(gtoy1))
#> Validating the 'igraph' object...
#> Vertex attribute 'name' missing; assigning names...
#> Creating a 'GraphSpace' object...

if (FALSE) { # \dontrun{

# Example 1: Nodes scaling with the legend
# When 'size' is mapped inside aes(), it follows
# ggplot2 default behavior: sizes are translated
# to absolute units (mm) via 'scale_size()'.

ggplot() +
  geom_graphspace(
  mapping = aes(size = nodeSize, fill = user_var2),
  data = gs, arrow_offset = 0.01) +
  scale_size(range = c(1, 12)) +
  theme(aspect.ratio = 1)

# Example 2: Nodes scaling with the viewport
# When 'size' is passed as a node attribute,
# as inherited from the igraph object, it is
# interpreted as a percentage of the plot area
# and translated to NPC units.

ggplot() +
  geom_graphspace(mapping = aes(fill = user_var2),
  data = gs, arrow_offset = 0.01) +
  theme(aspect.ratio = 1)

} # }
